*工業級* 氣體調整器 / CO2 加熱器 / 流量計 / 小型錶 / 等 > 大流量 / 高壓力 (點我) > (中型)美國氧氣調整器 VICTOR 型號：SR-250D

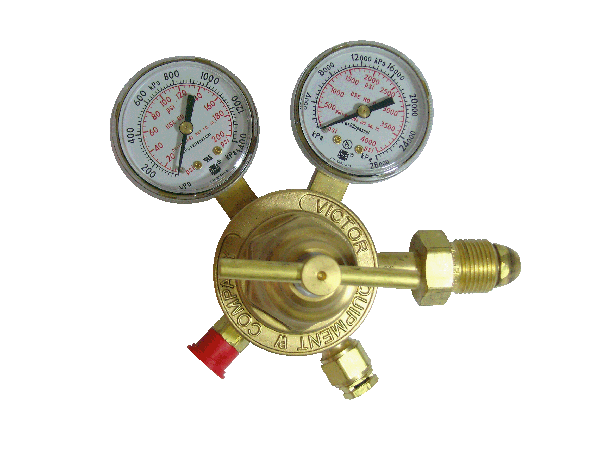

(中型)美國氧氣調整器 VICTOR 型號：SR-250D
廠牌：VICTOR
型號：SR-250D
壓力：4000×200 PSI
Victor Oxygen Regulator - SR 250D - Medium Duty
The SR 250 Series Regulators are ideally suited for a wide variety of medium capacity industrial and laboratory applications. Compact single stage construction. Uses include welding and cutting, inert gas welding, laboratory testing, etc.
Applications
Medium duty capacity.
Ideal for welding and cutting applications.
Compact single stage construction.
Dimensions: 6-3/8" W x 5-1/8" H x 4-1/4" D (16.5 cm x 13 cm x 11 cm)
Weight: ........ 2 lb. 15 oz. (1.4 kg)
DESIGN/CONSTRUCTION
Forged brass body and housing cap
2" gauges
Stem type seat mechanism
1-3/4" diaphragm
Delrin:cap bushing for smooth adjustments
External self reseating relief valve not designed to protect downstream apparatus (No relief valve is needed on SR 260 and SR 261 series regulators)
Sintered inlet filter
MATERIALS
Body...................Forged Brass
Diaphragm.........Fabric Reinforced Neoprene
Housing Cap.....Forged Brass
Inlet Filter...........Bronze
Specs
- Inlet Connection: CGA540
- Maximum Inlet: 3000 PSIG
- Delivery Range: 5-125 PSIG
- UL Listed
