美國CO2錶 VICTOR 型號：SR-311 100SCFH
廠牌：VICTOR
型號：SR-311 100SCFH
壓力：1500 PSI

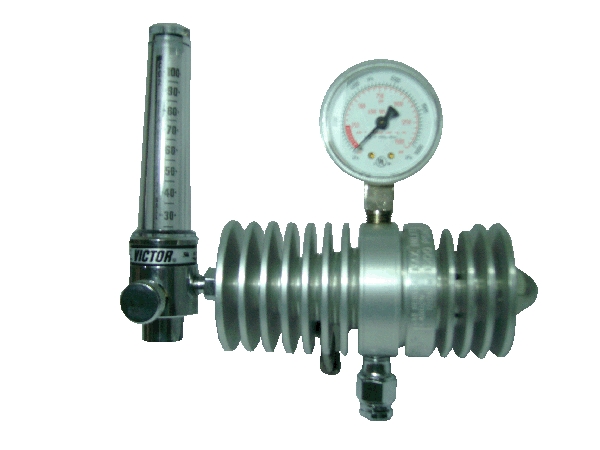

The SR311-320 CO2 Flowmeter adjustable pressure gauge is specifically designed for use with standard (non-siphoned) carbon dioxide cylinders. Our unique design incorporates aluminum heat sink fins which permit high flow rates without freeze-up or noticable change in pressure or flow. Victor Professional Flow Meter SR 311, High Capacity, 100 SCFH, Carbon Dioxide, 320, 5/8-18 (F) CGA 032
Industrial Applications
Designed for CO2 application (non-siphoned tube cylinders)
High flow CO2 applications (SR 310 100 PSIG) (SR 311/312 100 SCFH) with adequate supply or source
Designed for core wire applications
Weight
2 lb., 15 oz. (1.46 kg)
- DESIGN/CONSTRUCTION
- Machined aluminum body and housing cap
- 2" Gauges
- Stem type seat mechanism
- 1-3/4" diaphragm
- Self reseating relief valve (Not designed to protect downstream apparatus)
- Sintered inlet filter
- Flow Range 10-40 SCFH
- CGA Inlet Connection 580
- Flow Range 25 - 100 SCFH
- Specify CGA Inlet Connection 320
- Outlet Connection: 5/8" - 18 RH (F)
- PERFORMANCE
- Maximum Inlet 1500 PSIG
- Delivery Range100 SCFH
- High gas withdrawal rates my cause regulator freeze up and will require cylinder manifolding. Consult your gas supplier. See Meco Gas Heater.
- A regulator equipped with a flow gauge is not accurate when a back pressure in excess of 2 PSIG exists at the outlet.
- Back pressure is caused by a restriction in the apparatus downstream of the flowgauge.
- Metering valves, kinked hoses or even very long hoses are restrictions that can cause back pressure.
- In applications where back pressure in excess of 2 PSIG can be expected, a regulator equipped with a flowmeter should be used.
