*工業級* 氣體調整器 / CO2 加熱器 / 流量計 / 小型錶 / 等 > 大流量 / 高壓力 (點我) > (中型)美國乙炔調整器 VICTOR 型號：260A

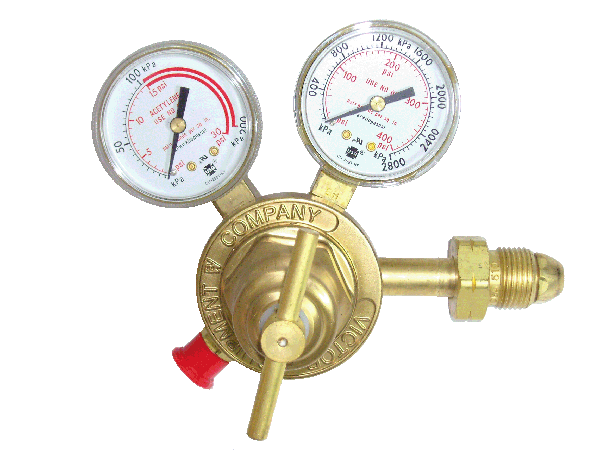

(中型)美國乙炔調整器 VICTOR 型號：260A
廠牌：VICTOR
型號：260A
壓力：400×30 PSI
Victor Professional Single Stage SR 260, Medium Capacity, A (15 PSIG), Acetylene, 510 WQ, 9/16-18 UNF LH
| Industrial Applications | Medium duty applications |
| Applications ranging from severe to moderate conditions | |
| Single stage design | |
| Weight | 2 lb. 15 oz. (1.4 kg) |
- PERFORMANCE
- Maximum Inlet 3000 PSIG
- Delivery Range 2-15
- DESIGN/CONSTRUCTION
- Forged brass body and housing cap
- 2" gauges
- Stem type seat mechanism
- 1-3/4" diaphragm
- Delrin cap bushing for smooth adjustments
- External self reseating relief valve on HP Models not designed to protect downstream apparatus
- Sintered inlet filter
- Several models for other gas applications, pressure, and additional CGA inlets are available.
| Technical Sales Brochure | SR 250 Series Single Stage Regulators, 013_65-2007 |
| Technical Sales Brochure | CSR 460A-510 Single Stage Regulator - 65-2503 |
The SR250 regulators are designed for medium applications & for medium to large cylinders.
